We care about you, your Ford and the environment. Read on to know what you should do to keep your Ford’s after-treatment system (Lean NOx Trap and Diesel Particulate Filter) in good condition.

We care about you, your Ford and the environment. Read on to know what you should do to keep your Ford’s after-treatment system (Lean NOx Trap and Diesel Particulate Filter) in good condition.

About The BS6 Regulation

About The BS6 Regulation

BS6 or Bharat Stage 6 are Indian emission regulations that help in reducing pollution. They have been applicable from 1st April 2020. Some of the major pollutants from automobile include- NOx (Oxides of Nitrogen), CO (Carbon Monoxide), HC (Hydrocarbons) and PM (Particulate Matter). Lean NOx Trap’s (LNT) primary function is to reduce emission pollutants (CO, HC and NOx) while Diesel Particulate Filter (DPF) entraps carbon soot, thereby ensuring cleaner tailpipe emissions.

BS6 or Bharat Stage 6 are Indian emission regulations that help in reducing pollution. They have been applicable from 1st April 2020. Some of the major pollutants from automobile include- NOx (Oxides of Nitrogen), CO (Carbon Monoxide), HC (Hydrocarbons) and PM (Particulate Matter). Lean NOx Trap’s (LNT) primary function is to reduce emission pollutants (CO, HC and NOx) while Diesel Particulate Filter (DPF) entraps carbon soot, thereby ensuring cleaner tailpipe emissions.

How A Diesel Particulate Filter Functions

How A Diesel Particulate Filter Functions

Diesel Particulate Filter is an integral part of after-treatment and performs the key task of emission compliance with respect to entrapping/regenerating carbon soot and ensuring clean environment. Carbon soot entrapment and regeneration reset Diesel Particulate Filter for the next cycle of entrapment which occurs periodically based on the drive pattern.

Diesel Particulate Filter is an integral part of after-treatment and performs the key task of emission compliance with respect to entrapping/regenerating carbon soot and ensuring clean environment. Carbon soot entrapment and regeneration reset Diesel Particulate Filter for the next cycle of entrapment which occurs periodically based on the drive pattern.

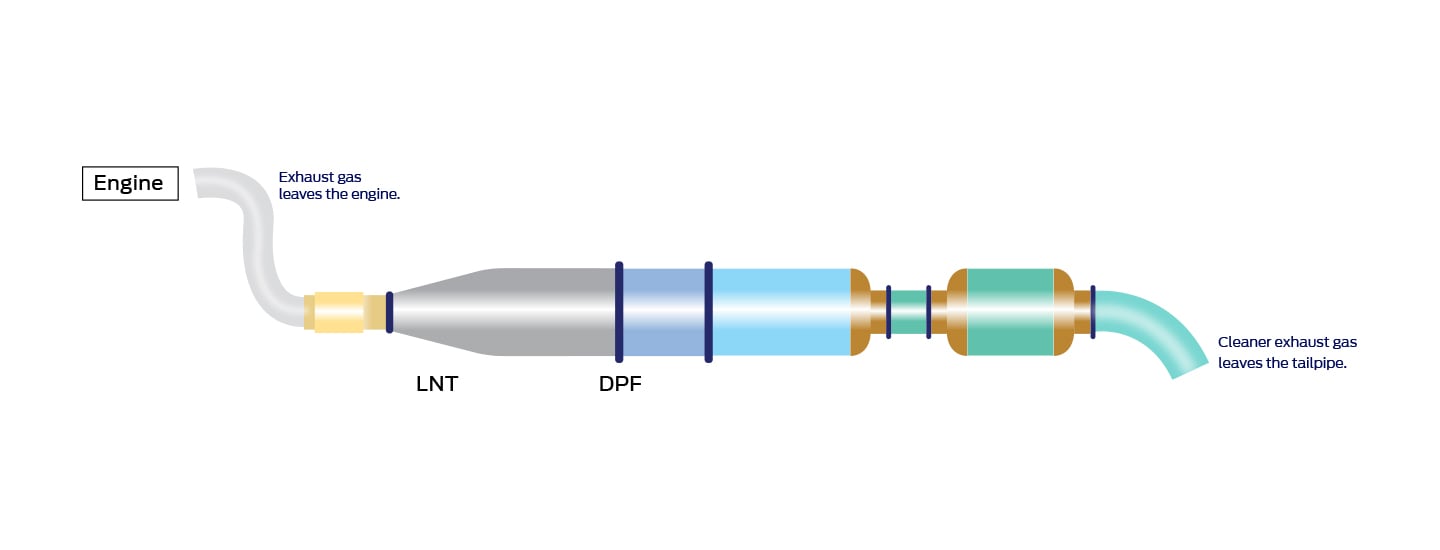

Billboard Image 2

How A Lean NOx Trap (LNT) Functions

How A Lean NOx Trap (LNT) Functions

Lean NOx Trap (LNT) is a part of after-treatment device responsible for oxidation of Carbon Monoxide (CO), Hydrocarbon (HC) into Carbon Dioxide (CO2) and Water (H2O). It is also responsible for Nitrous Oxides (NOx) entrapment/purging with reduction reaction to Nitrogen (N2) and Oxygen (O2). Sulphur accumulation on LNT is a phenomenon due to available Sulphur in diesel fuel. Excessive Sulphur accumulation leads to drop in efficiency of the LNT to control NOx emissions.

Lean NOx Trap (LNT) is a part of after-treatment device responsible for oxidation of Carbon Monoxide (CO), Hydrocarbon (HC) into Carbon Dioxide (CO2) and Water (H2O). It is also responsible for Nitrous Oxides (NOx) entrapment/purging with reduction reaction to Nitrogen (N2) and Oxygen (O2). Sulphur accumulation on LNT is a phenomenon due to available Sulphur in diesel fuel. Excessive Sulphur accumulation leads to drop in efficiency of the LNT to control NOx emissions.

Causes For Blocked DPF & LNT Filters

Causes For Blocked DPF & LNT Filters

ford Diesel Filter

Short journeys in the city

Short journeys in the city

ford Diesel Filter

Heavy traffic


Heavy traffic



ford Diesel Filter

Driving at a lower speed for long intervals


Driving at a lower speed for long intervals

ford Diesel Filter

Driving in hilly regions

Driving in hilly regions



Note: LNT regeneration will not happen at altitude above 2500 metres.

Note: LNT regeneration will not happen at altitude above 2500 metres.

All About DPF Regeneration

All About DPF Regeneration


Cluster Message + Malfunction Indicator Light


Action to be taken

ford

Customer to drive vehicle for about 60 kms, >60 kmph in 4th/5th gear continuously such that the engine speed reaches to 1500-2300 rpm (as high load/high temperature is required to clean the DPF Filter).
ford ford ford

ford + ford

Customer to drive vehicle for about 60 kms, >60 kmph in 4th/5th gear continuously such that the engine speed reaches to 1500-2300 rpm (as high load/high temperature is required to clean the DPF Filter).
ford ford ford

ford + ford + Power Loss

Customer to visit the nearby dealership for Auto Regeneration through FDRS.
ford ford

ford

Automatic Regeneration is in process. Continue to drive for effective cleaning. DPF regeneration will be interrupted if the engine is stopped prematurely.
ford ford


Cluster Message + Malfunction Indicator Light


Action to be taken

ford

Customer to drive vehicle for about 60 kms, >60 kmph in 4th/5th gear continuously such that the engine speed reaches to 1500-2300 rpm (as high load/high temperature is required to clean the DPF Filter).
ford ford ford

ford + ford

Customer to drive vehicle for about 60 kms, >60 kmph in 4th/5th gear continuously such that the engine speed reaches to 1500-2300 rpm (as high load/high temperature is required to clean the DPF Filter).
ford ford ford

ford + ford + Power Loss

Customer to visit the nearby dealership for Auto Regeneration through FDRS.
ford ford

ford

Automatic Regeneration is in process. Continue to drive for effective cleaning. DPF regeneration will be interrupted if the engine is stopped prematurely.
ford ford

All About LNT Regeneration

All About LNT Regeneration


Cluster Message + Malfunction Indicator Light


Action to be taken

ford

Customer to drive vehicle for about 60 kms, >60 kmph in 4th/5th gear continuously such that the engine speed reaches to 1500-2300 rpm (as high load/high temperature is required to clean the LNT Filter).
ford ford ford

ford

Customer to drive vehicle for about 60 kms, >60 kmph in 4th/5th gear continuously such that the engine speed reaches to 1500-2300 rpm (as high load/high temperature is required to clean the LNT Filter).
ford ford ford

ford

Customer to drive vehicle for >60 kmph in 4th/5th gear continuously till the message goes off.
ford ford ford

ford

Automatic Regeneration is in process. Continue to drive for effective cleaning. LNT regeneration will be interrupted if the engine speed is lesser than 1250 rpm in suitable gear drive.
ford ford


Cluster Message + Malfunction Indicator Light


Action to be taken

ford

Customer to drive vehicle for about 60 kms, >60 kmph in 4th/5th gear continuously such that the engine speed reaches to 1500-2300 rpm (as high load/high temperature is required to clean the LNT Filter).
ford ford ford

ford

Customer to drive vehicle for about 60 kms, >60 kmph in 4th/5th gear continuously such that the engine speed reaches to 1500-2300 rpm (as high load/high temperature is required to clean the LNT Filter).
ford ford ford

ford

Customer to drive vehicle for >60 kmph in 4th/5th gear continuously till the message goes off.
ford ford ford

ford

Automatic Regeneration is in process. Continue to drive for effective cleaning. LNT regeneration will be interrupted if the engjne speed is lesser than 1250 rpm in suitable gear drive.
ford ford

What If You Don’t Take Care Of The Blocked DPF?

What If You Don’t Take Care Of The Blocked DPF?

ford Diesel Filter

Loss of Power

Loss of Power

ford Diesel Filter

Damage to Exhaust System
(Catalytic Convertor)

Damage to Exhaust System (Catalytic Convertor)

ford Diesel Filter

Damage to Engine

Damage to Engine
